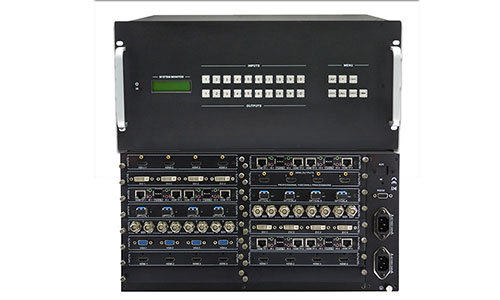

High Peformance 32x32 Modular Matrix Switcher - HDMMX3232A
High Peformance 32x32 Modular Matrix Switcher - HDMMX3232A
$ 13,995
The KanexPro 32x32 modular matrix is the ultimate answer to cost–effective universal switching, whether analog or digital signals – this modular matrix will let you plug various changeable I/O cards. It's a chassis designed for adding 32-inputs to 32-outputs in a 5U frame.
System Integrators and AV installers are constantly faced with challenges of running multiple analog and digital I/O’s when designing a system. This modular matrix will provide various I/O with hot-swappable slots. You can now customize and choose the right card for different applications.
The modular matrix supports different video signals with cross-switching ranging from VGA, DVI, HDMI, SD/HD/3G-SDI, to HDMI over twisted pair and fiber optic input and output cards. Every video or audio signal is transmitted and switched independently with power fail memory function and audio breakaway. Fully controllable through RS-232 and optional TCP/IP when used with third-party control systems.
Simply select the blend of analog or digital with stereo audio matrix cards that best fits your application, and then install them in order desired. Fully field upgradeable, as AV signal routing needs change over time, now you can choose new matrix cards to adapt to new requirements.
Ideal for various commercial applications such as, control centers, smart lecture halls, medical, government and residential environments where signal management and distribution of high-resolution video signals and audio is critical.
Features
Customizable 32x32 modular chassis serving various signal formats
Supported formats: VGA, SDI, DVI, HDMI, HDBaseT & fiber optic
High-bandwidth up to 10.2 Gbps
Easy to upgrade, expand and add modules
Integrated signal processing
Cross-point ultra-switching – tie any input to any output
Signal re-clocking & equalizer built-in
Advanced HDCP & EDID management
Hot swappable design
Illuminated buttons
Front panel LCD
Front panel security lock
TCP/IP & RS-232 control
9 global presets
Installer friendly
5U rack-mountable aluminum enclosure
Dual-Internal power supply (100Volt~240Volt AC, 50/60Hz)
Backed by KanexPro's 3-Year full parts & labor warranty

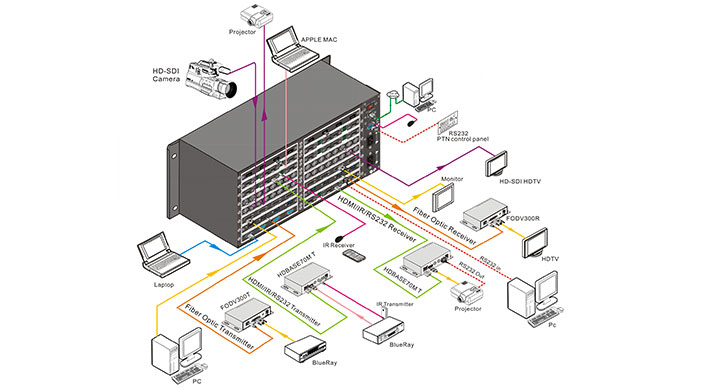

Connection diagram
System Integrators and AV installers are constantly faced with challenges of running multiple analog and digital I/O’s when designing a system. This modular matrix will provide various I/O with hot-swappable slots. You can now customize and choose the right card for different applications.
The modular matrix supports different video signals with cross-switching ranging from VGA, DVI, HDMI, SD/HD/3G-SDI, to HDMI over twisted pair and fiber optic input and output cards. Every video or audio signal is transmitted and switched independently with power fail memory function and audio breakaway. Fully controllable through RS-232 and optional TCP/IP when used with third-party control systems.
Simply select the blend of analog or digital with stereo audio matrix cards that best fits your application, and then install them in order desired. Fully field upgradeable, as AV signal routing needs change over time, now you can choose new matrix cards to adapt to new requirements.
Ideal for various commercial applications such as, control centers, smart lecture halls, medical, government and residential environments where signal management and distribution of high-resolution video signals and audio is critical.
Features
Customizable 32x32 modular chassis serving various signal formats
Supported formats: VGA, SDI, DVI, HDMI, HDBaseT & fiber optic
High-bandwidth up to 10.2 Gbps
Easy to upgrade, expand and add modules
Integrated signal processing
Cross-point ultra-switching – tie any input to any output
Signal re-clocking & equalizer built-in
Advanced HDCP & EDID management
Hot swappable design
Illuminated buttons
Front panel LCD
Front panel security lock
TCP/IP & RS-232 control
9 global presets
Installer friendly
5U rack-mountable aluminum enclosure
Dual-Internal power supply (100Volt~240Volt AC, 50/60Hz)
Backed by KanexPro's 3-Year full parts & labor warranty
Connection diagram
