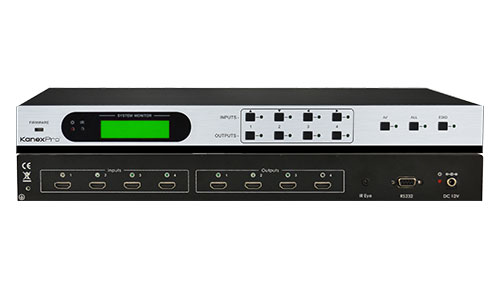

Ultra Fast 4x4 HDMI Matrix Switcher - HDMX44RS
Ultra Fast 4x4 HDMI Matrix Switcher - HDMX44RS
$ 1,100
The KanexPro HDMI 4x4 Matrix is an ultra-high performance, digital matrix switcher engineered to route high-resolution HDMI signals from 4 inputs to 4 outputs. The unit provides full HDCP internal management for today’s integration in commercial A/V market, ensuring HDCP key authentication, and administering the handshake internally.
It maintains resolutions up to 1920 x 1200 or full HD 1080p/60 supporting full cross point switching. Also provides built-in EDID management for recognizing multiple display formats and sources.
Fully controllable through RS-232 commands, IR remote and front-panel buttons, this matrix switcher includes 9-global presets for I/O configurations which allows saving and recalling via the front-panel, IR or through serial control at any time.
The KanexPro HDMI 4x4 matrix switcher is ideal for numerous commercial applications such as military, medical and government environments where swift, reliable switching and distribution of high-resolution DVI/HDMI signals is critical to meet pixel-by-pixel needs.
Features
Instant switching to four DVI / HDMI displays
Supports bandwidth up to 10.2 Gbps
Smart EDID management for proper display output
Built-in HDCP internal management
Supports all 3D formats
Supports High Speed HDMI Specifications (Deep Color, Lip Sync, and HD lossless audio formats)
Supports full HD 1080p (1920x1080@60Hz)
Computer resolutions up to WUXGA (1920x1200@60Hz)
Automatic gain compensation and equalization up to 100ft (30m)
Supports Dolby digital-true HD, DTS-HD
Front-panel LCD for status update
Control through, IR, RS-232 and front-panel buttons
Full RS-232 control for incorporating third party control systems
1U (19") rack mountable aluminum enclosure
Locking power supply
Internal Universal power for worldwide compatibility (100Volt-240Volt AC, 50/60Hz)

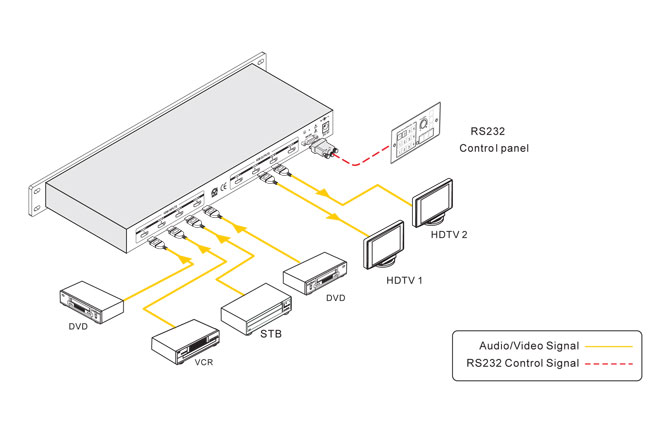

Connection Diagram
It maintains resolutions up to 1920 x 1200 or full HD 1080p/60 supporting full cross point switching. Also provides built-in EDID management for recognizing multiple display formats and sources.
Fully controllable through RS-232 commands, IR remote and front-panel buttons, this matrix switcher includes 9-global presets for I/O configurations which allows saving and recalling via the front-panel, IR or through serial control at any time.
The KanexPro HDMI 4x4 matrix switcher is ideal for numerous commercial applications such as military, medical and government environments where swift, reliable switching and distribution of high-resolution DVI/HDMI signals is critical to meet pixel-by-pixel needs.
Features
Instant switching to four DVI / HDMI displays
Supports bandwidth up to 10.2 Gbps
Smart EDID management for proper display output
Built-in HDCP internal management
Supports all 3D formats
Supports High Speed HDMI Specifications (Deep Color, Lip Sync, and HD lossless audio formats)
Supports full HD 1080p (1920x1080@60Hz)
Computer resolutions up to WUXGA (1920x1200@60Hz)
Automatic gain compensation and equalization up to 100ft (30m)
Supports Dolby digital-true HD, DTS-HD
Front-panel LCD for status update
Control through, IR, RS-232 and front-panel buttons
Full RS-232 control for incorporating third party control systems
1U (19") rack mountable aluminum enclosure
Locking power supply
Internal Universal power for worldwide compatibility (100Volt-240Volt AC, 50/60Hz)
Connection Diagram
