4x4 DVI Video Wall with Multi-Viewer - SW-VDYWALL
4x4 DVI Video Wall with Multi-Viewer - SW-VDYWALL
$ 5,200
The KanexPro SW-VDYWALL is a Video Processor with 4 DVI input and 4 DVI output, which enables you to configure to either a 4x4 Video Wall or create a 4x1 Multi-viewer. This high-performance processor supports image overlapping and output scaling function to your specific needs. Fully compliant with HDCP and supports EDID management.
The Video Wall does not require all 4 sources and 4 displays to be connected in-order to work, one can connect and select between 1 to 2 inputs to 4 outputs such as Apple TV or Blu-ray to 4 displays. Included software, using RS-232 connection to a computer, will help you set up all the different layout configurations such as PIP, POP, switching functions, resolutions and save & recall functions.
The built-in scaler supports various PC & HD resolutions up to 1920x1200. The embedded scaler converts an input signal to match the native resolutions of output displays, up-scaling if needs to be.The scaler is also manually adjustable through front-panel buttons; featuring selectable output settings of up to 1920 x 1200@60Hz.
Ideal for operation centers, military installations, shopping malls and airports where demand for high-resolution 4x4 video wall is critical.
Features
2 x 2 Video Wall Processor
4 x 1 Multi-viewer function
Supports HDMI input / output
Various layouts controlled by software
High-bandwidth of 10.2 Gbps
Supports image-overlapping
Supports output scaling
Provisions PIP & POP
HDCP / EDID compliant
Built-in control for screen size & position
Adjustable contrast & brightness
Easy firmware update through USB
Control via RS-232 & TCP/IP
Rack mountable 1U
3 year parts & labor warranty

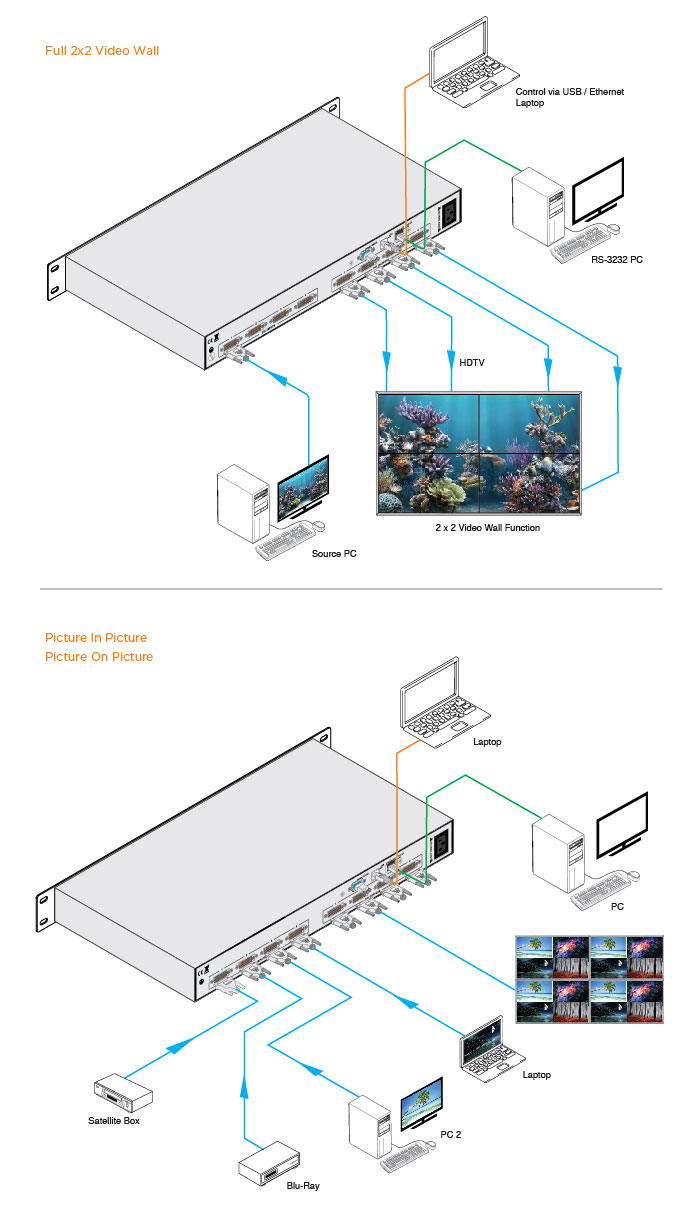

Connection Diagram

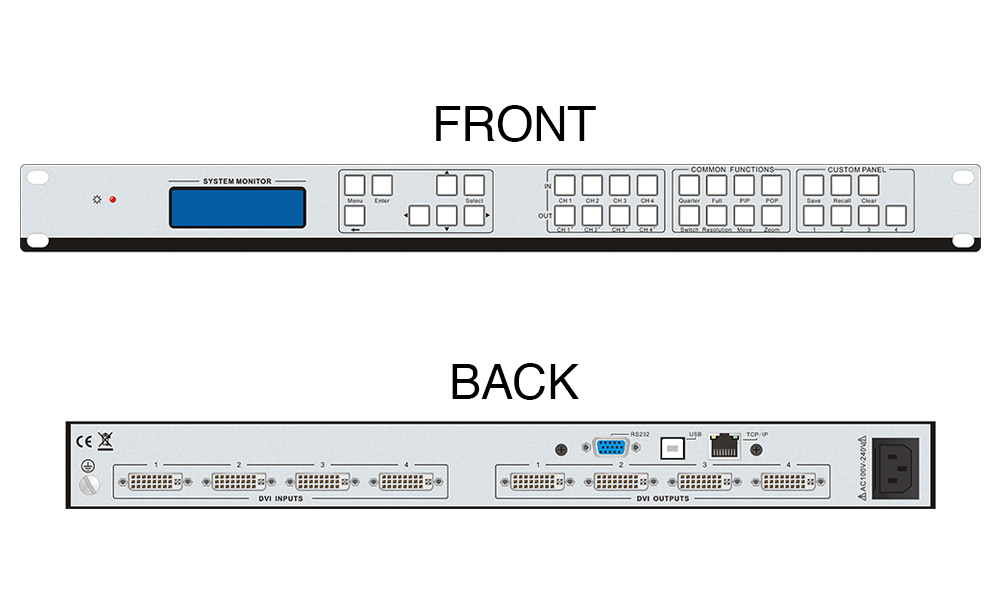

Panel
The Video Wall does not require all 4 sources and 4 displays to be connected in-order to work, one can connect and select between 1 to 2 inputs to 4 outputs such as Apple TV or Blu-ray to 4 displays. Included software, using RS-232 connection to a computer, will help you set up all the different layout configurations such as PIP, POP, switching functions, resolutions and save & recall functions.
The built-in scaler supports various PC & HD resolutions up to 1920x1200. The embedded scaler converts an input signal to match the native resolutions of output displays, up-scaling if needs to be.The scaler is also manually adjustable through front-panel buttons; featuring selectable output settings of up to 1920 x 1200@60Hz.
Ideal for operation centers, military installations, shopping malls and airports where demand for high-resolution 4x4 video wall is critical.
Features
2 x 2 Video Wall Processor
4 x 1 Multi-viewer function
Supports HDMI input / output
Various layouts controlled by software
High-bandwidth of 10.2 Gbps
Supports image-overlapping
Supports output scaling
Provisions PIP & POP
HDCP / EDID compliant
Built-in control for screen size & position
Adjustable contrast & brightness
Easy firmware update through USB
Control via RS-232 & TCP/IP
Rack mountable 1U
3 year parts & labor warranty
Connection Diagram
Panel
