HDBaseT® Presentation Switcher & Scaler w/ 12 inputs - HDSC12D
HDBaseT® Presentation Switcher & Scaler w/ 12 inputs - HDSC12D
$ 1,900
The KanexPro HDSC12D is an all-in-one switcher scaler designed with twelve inputs; (C-Video, S-Video, YPbPr, VGA and HDMI). Switch, scale and extend to high-resolution HDMI or VGA formats.
HDBaseT incorporated – the scaler includes an external receiver over CAT6-STP based on HDBaseT technology. HDMI output can be extended carrying high defintion video and multi-channel audio up to 230 feet (70m).
Converging IT with AV applications, the HDSC12D scaler integrates easily in various analog to digital applications such as when used in lecture halls, conference room airports, hotel lobbies, restaurants, pubs, healthcare facilities and control centers.
Note: The HDMI output on this scaler will not support Surround sound or Dolbt Digital 5.1.
Features
Switch & Scale 12-inputs to 2-high-resolution displays
4 HDMI Inputs
4 VGA Inputs with 3.5mm Audio
1 YPbPr Input
1 Composite / S-Video Input with L/R Stereo Audio
1 Microphone Input
HDBaseT receiver supports distance up to 230ft [70m]
1 HDMI Output
1 VGA Output with L/R Stereo Audio (For non-HDCP encrypted content)
1 HDMI HDBaseT CAT6 STP receiver included
Supports scaling input up to 1080p
2 x 10 Watt Amplifier
Built-in Volume Control
Front Panel Buttons
IR remote control included
Support for RS-232 Control
TCP/IP port (optional)
Backed by KanexPro 3 -Year Parts & Labor Warranty

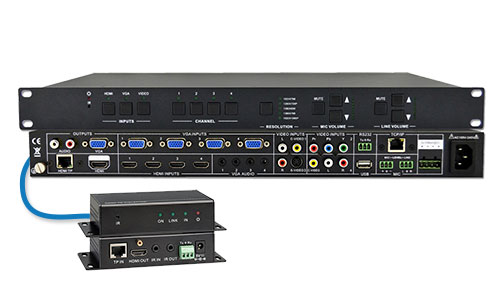

Connection Diagram

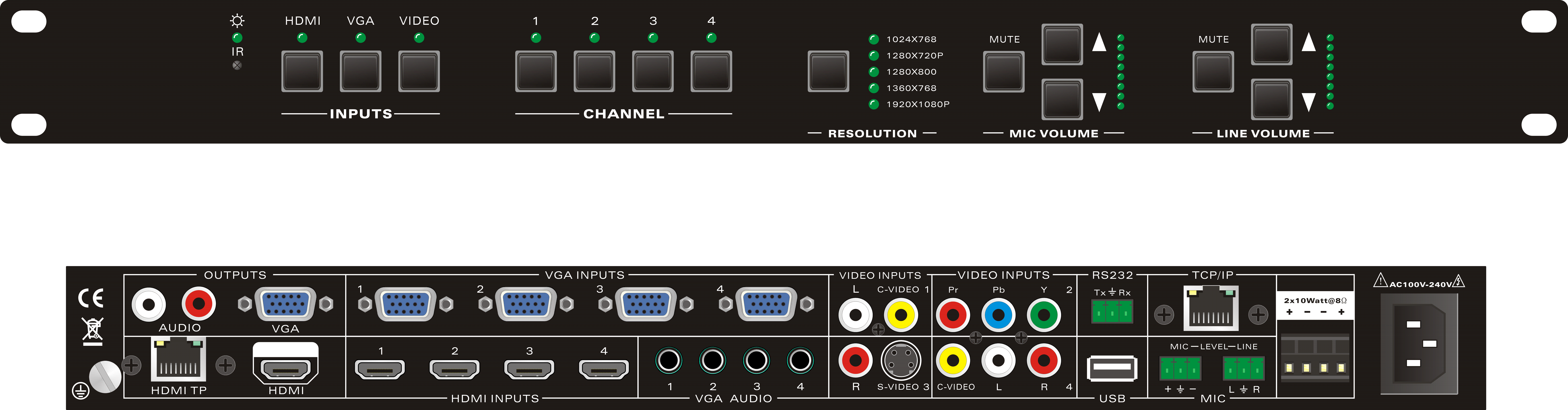

Panel
HDBaseT incorporated – the scaler includes an external receiver over CAT6-STP based on HDBaseT technology. HDMI output can be extended carrying high defintion video and multi-channel audio up to 230 feet (70m).
Converging IT with AV applications, the HDSC12D scaler integrates easily in various analog to digital applications such as when used in lecture halls, conference room airports, hotel lobbies, restaurants, pubs, healthcare facilities and control centers.
Note: The HDMI output on this scaler will not support Surround sound or Dolbt Digital 5.1.
Features
Switch & Scale 12-inputs to 2-high-resolution displays
4 HDMI Inputs
4 VGA Inputs with 3.5mm Audio
1 YPbPr Input
1 Composite / S-Video Input with L/R Stereo Audio
1 Microphone Input
HDBaseT receiver supports distance up to 230ft [70m]
1 HDMI Output
1 VGA Output with L/R Stereo Audio (For non-HDCP encrypted content)
1 HDMI HDBaseT CAT6 STP receiver included
Supports scaling input up to 1080p
2 x 10 Watt Amplifier
Built-in Volume Control
Front Panel Buttons
IR remote control included
Support for RS-232 Control
TCP/IP port (optional)
Backed by KanexPro 3 -Year Parts & Labor Warranty
Connection Diagram
Panel
