Professional 4x1 HDMI Switcher with HDCP & 3D Support - HD4XSW
Professional 4x1 HDMI Switcher with HDCP & 3D Support - HD4XSW
$ 325
The KanexPro HDMI 4x1 is a four input, one output switcher that supports High Speed HDMI specifications and features including data rates up to 10.2Gbps, Deep Color, Lip Sync, and HD lossless audio formats. The switcher provisions built-in HDCP management technology, which analyzes HDCP key, and administers the handshake internally. 3D pass-through with HDTV resolutions up to 1080p/60 with 12-bit Color depth and PC resolutions up to 1920x1200 are maintained together with embedded multi-channel digital audio.
The switcher also features built-in gain equalization and synchronization for each input to provide full compensation for signal loss when routed using long HDMI cables or source devices with weak HDMI signals.
With convenient control options such as RS-232, front-panel buttons and IR this unit can be easily integrated to any Pro A/V environment such as conference rooms, educational facilities,control rooms, monitoring centers and government institutions.
Features
Switch four HDMI inputs with video and multi-channel audio
Supports bandwidth up to 10.2 Gbps
Built-in EDID & HDCP internal management
HDCP compliant
Supports 3D pass-through
Supports High Speed HDMI Specifications (Deep Color, Lip Sync, and HD lossless audio formats)
Supports full HD 1080p (1920x1080@60Hz)
Computer resolutions up to WUXGA (1920x1200@60Hz)
Supports DDC transmission
Automatic gain compensation and equalization
CEC protocol pass-through
Supports Dolby digital-true HD, DTS-HD
Front-panel LEDs for link activity
Control through, IR, RS-232 and front-panel buttons
Table/ Wall-mountable aluminum enclosure
Internal Universal power adaptable (100Volt-240Volt AC, 50/60Hz)
Backed by KanexPro's 3-Year full parts & labor warranty
Connection Diagram

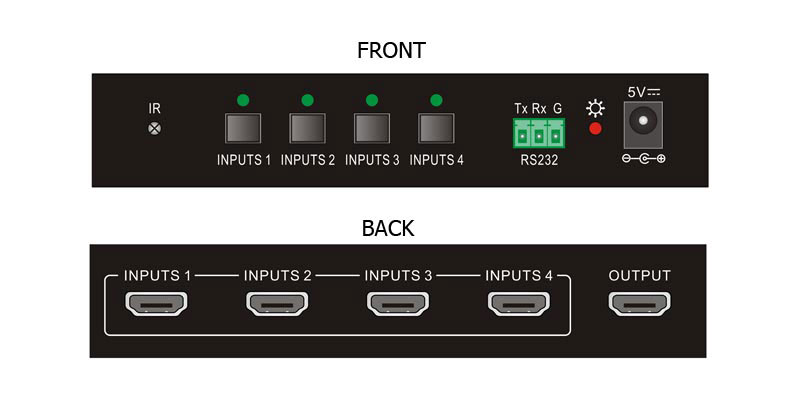

Panel
The switcher also features built-in gain equalization and synchronization for each input to provide full compensation for signal loss when routed using long HDMI cables or source devices with weak HDMI signals.
With convenient control options such as RS-232, front-panel buttons and IR this unit can be easily integrated to any Pro A/V environment such as conference rooms, educational facilities,control rooms, monitoring centers and government institutions.
Features
Switch four HDMI inputs with video and multi-channel audio
Supports bandwidth up to 10.2 Gbps
Built-in EDID & HDCP internal management
HDCP compliant
Supports 3D pass-through
Supports High Speed HDMI Specifications (Deep Color, Lip Sync, and HD lossless audio formats)
Supports full HD 1080p (1920x1080@60Hz)
Computer resolutions up to WUXGA (1920x1200@60Hz)
Supports DDC transmission
Automatic gain compensation and equalization
CEC protocol pass-through
Supports Dolby digital-true HD, DTS-HD
Front-panel LEDs for link activity
Control through, IR, RS-232 and front-panel buttons
Table/ Wall-mountable aluminum enclosure
Internal Universal power adaptable (100Volt-240Volt AC, 50/60Hz)
Backed by KanexPro's 3-Year full parts & labor warranty
Connection Diagram
Panel
