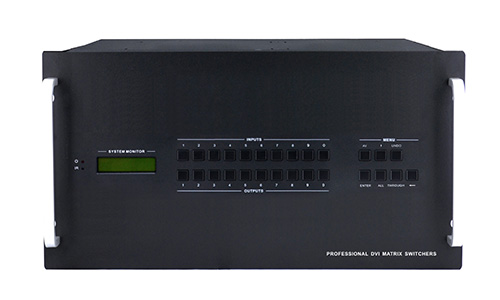

Professional DVI 32X32 Matrix Switcher with RS-232 - MXDV3232A
Professional DVI 32X32 Matrix Switcher with RS-232 - MXDV3232A
$ 21,500
The KanexPro DVI 32x32 matrix is an ultra-high performance, digital matrix switcher engineered to route DVI or HDMI signals from 32 inputs to 32 outputs. The unit provides full HDCP internal management for today’s integration in commercial A/V market, ensuring HDCP key authentication, and administering the handshake internally.
It maintains resolutions from 1920 x 1200, 1080p and 3D, supporting full cross point switching. The matrix supports smart EDID management for rapid integration of sources and displays.
Fully controllable through RS-232 commands, IR remote and front-panel buttons, this switcher includes 10-global presets for I/O configurations which allows saving and recalling via the front-panel, IR or through serial control at any time.
The KanexPro HDMI 32x32 matrix switcher is ideal for countless commercial applications such as military, medical and government environments where swift, reliable switching and distribution of high-resolution DVI/HDMI signals is critical to meet pixel-by-pixel needs.
Note: This DVI matrix does not support or have audio I/O's
Features
Fast-switch up to 32 x DVI sources to 32 x DVI displays
Supports bandwidth up to 10.2 Gbps
Smart EDID & HDCP internal management
HDCP 1.3 complaint
Built-in re-clock technology for signal compensation
10 Presets for save & recall
Supports 3D pass-through
Supports full HD 1080p (1920x1080@60Hz)
Computer resolutions up to WUXGA (1920x1200@60Hz)
Supports DDC transmission
CEC protocol pass-through
Front-panel system monitor for signal and matrix I/O routing
Control through, IR, RS-232 and front-panel buttons
5U rack style aluminum enclosure
Redundant Internal Universal power for worldwide compatibility (100Volt-240Volt AC, 50/60Hz)
Backed by KanexPro's 3-year full parts & labor warranty
Note: Ethernet/ Aux port is optional
It maintains resolutions from 1920 x 1200, 1080p and 3D, supporting full cross point switching. The matrix supports smart EDID management for rapid integration of sources and displays.
Fully controllable through RS-232 commands, IR remote and front-panel buttons, this switcher includes 10-global presets for I/O configurations which allows saving and recalling via the front-panel, IR or through serial control at any time.
The KanexPro HDMI 32x32 matrix switcher is ideal for countless commercial applications such as military, medical and government environments where swift, reliable switching and distribution of high-resolution DVI/HDMI signals is critical to meet pixel-by-pixel needs.
Note: This DVI matrix does not support or have audio I/O's
Features
Fast-switch up to 32 x DVI sources to 32 x DVI displays
Supports bandwidth up to 10.2 Gbps
Smart EDID & HDCP internal management
HDCP 1.3 complaint
Built-in re-clock technology for signal compensation
10 Presets for save & recall
Supports 3D pass-through
Supports full HD 1080p (1920x1080@60Hz)
Computer resolutions up to WUXGA (1920x1200@60Hz)
Supports DDC transmission
CEC protocol pass-through
Front-panel system monitor for signal and matrix I/O routing
Control through, IR, RS-232 and front-panel buttons
5U rack style aluminum enclosure
Redundant Internal Universal power for worldwide compatibility (100Volt-240Volt AC, 50/60Hz)
Backed by KanexPro's 3-year full parts & labor warranty
Note: Ethernet/ Aux port is optional
