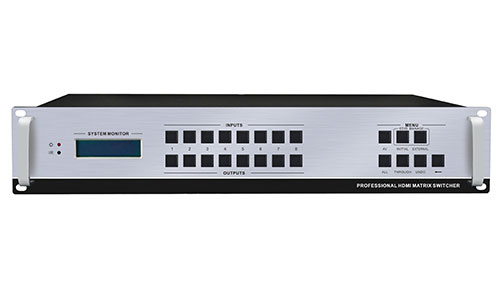

Professional HDMI 8x8 Matrix Switcher with built-in HDCP and EDID Management - MXHD88A
Professional HDMI 8x8 Matrix Switcher with built-in HDCP and EDID Management - MXHD88A
$6,000
The KanexPro HDMI 8x8 Matrix is an ultra-high performance, digital matrix switcher engineered to route HDMI signals from 8 inputs to 8 outputs. The unit provides full HDCP internal management for today’s integration in commercial A/V market, ensuring HDCP key authentication, and administering the handshake internally.
It maintains resolutions up to 1920 x 1200, 1080p or 2K, supporting full cross point switching. The matrix supports built-in EDID management for recognizing multiple display formats and sources.
Fully controllable through RS-232 commands, IR remote and front-panel buttons, this switcher includes 9-global presets for I/O configurations which allows saving and recalling via the front-panel, IR or through serial control at any time.
The KanexPro HDMI 8x8 matrix switcher is ideal for countless commercial applications such as military, medical and government environments where swift, reliable switching and distribution of high-resolution DVI/HDMI signals is critical to meet pixel-by-pixel needs.
Features
Fast-switch up to eight HDMI/DVI sources to eight displays
Supports bandwidth up to 10.2 Gbps
Built-in EDID & HDCP internal management
HDCP 1.3 complaint
Supports 3D pass-through
Supports High Speed HDMI Specifications (Deep Color, Lip Sync, and HD lossless audio formats)
Supports full HD 1080p (1920x1080@60Hz)
Computer resolutions up to WUXGA (1920x1200@60Hz)
Supports DDC transmission
Automatic gain compensation and equalization up to 100ft (30m)
Supports Dolby digital-true HD, DTS-HD
CEC protocol pass-through.
Front-panel LEDs for input/output signal presence
Control through, IR, RS-232 and front-panel buttons
Full RS-232 control-perfect for incorporating third party control systems
2U rack mountable aluminum enclosure
Internal Universal power for worldwide compatibility (100Volt-240Volt AC, 50/60Hz)
Backed by KanexPro's 3-year full parts & labor warranty
Note: Ethernet/ Aux port is optional

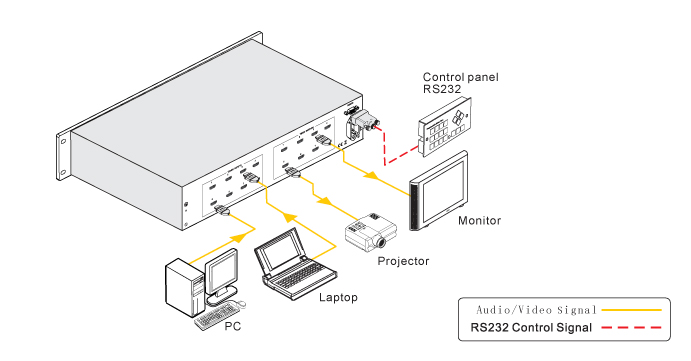

Connection diagram

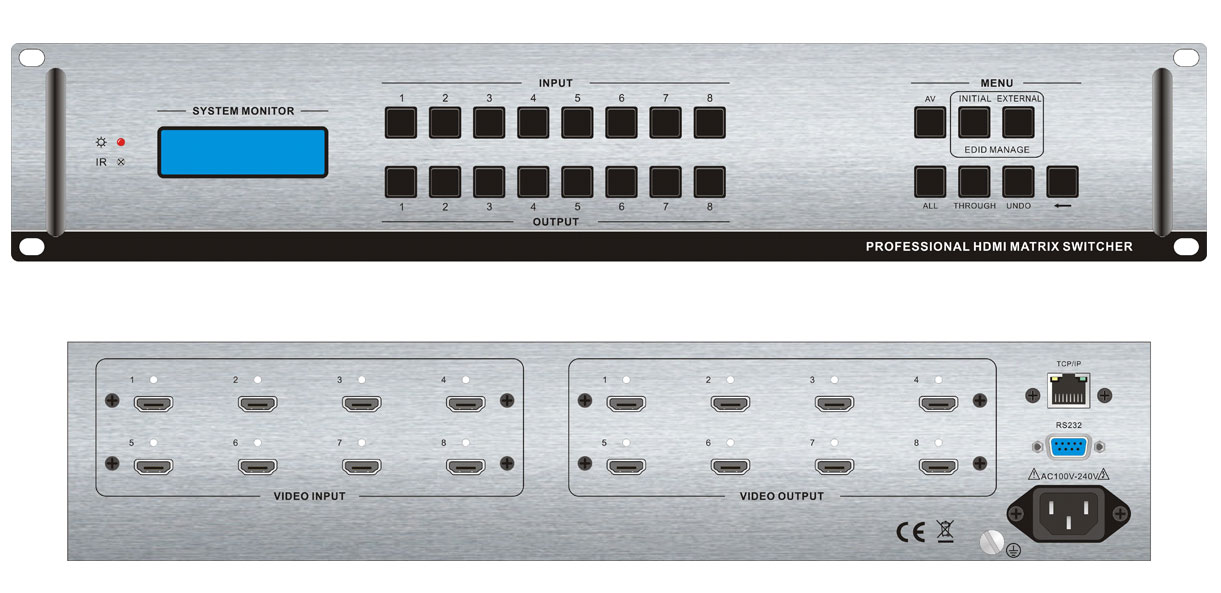

Panel
It maintains resolutions up to 1920 x 1200, 1080p or 2K, supporting full cross point switching. The matrix supports built-in EDID management for recognizing multiple display formats and sources.
Fully controllable through RS-232 commands, IR remote and front-panel buttons, this switcher includes 9-global presets for I/O configurations which allows saving and recalling via the front-panel, IR or through serial control at any time.
The KanexPro HDMI 8x8 matrix switcher is ideal for countless commercial applications such as military, medical and government environments where swift, reliable switching and distribution of high-resolution DVI/HDMI signals is critical to meet pixel-by-pixel needs.
Features
Fast-switch up to eight HDMI/DVI sources to eight displays
Supports bandwidth up to 10.2 Gbps
Built-in EDID & HDCP internal management
HDCP 1.3 complaint
Supports 3D pass-through
Supports High Speed HDMI Specifications (Deep Color, Lip Sync, and HD lossless audio formats)
Supports full HD 1080p (1920x1080@60Hz)
Computer resolutions up to WUXGA (1920x1200@60Hz)
Supports DDC transmission
Automatic gain compensation and equalization up to 100ft (30m)
Supports Dolby digital-true HD, DTS-HD
CEC protocol pass-through.
Front-panel LEDs for input/output signal presence
Control through, IR, RS-232 and front-panel buttons
Full RS-232 control-perfect for incorporating third party control systems
2U rack mountable aluminum enclosure
Internal Universal power for worldwide compatibility (100Volt-240Volt AC, 50/60Hz)
Backed by KanexPro's 3-year full parts & labor warranty
Note: Ethernet/ Aux port is optional
Connection diagram
Panel
