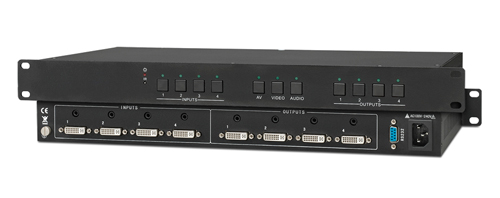

DVI 4x4 Matrix Switcher with built-in HDCP, RS-232 & Audio - MXDV44A
DVI 4x4 Matrix Switcher with built-in HDCP, RS-232 & Audio - MXDV44A
$ 1,300
The KanexPro line-up of DVI Matrix Switchers with or without stereo audio represents unparalleled line of professional products that provides full HDCP internal management for today’s integration in commercial A/V market. These matrix switchers are designed to route single link DVI-D signals supporting High Speed HDMI specifications and resolutions up to 1920x1200@60Hz and 1080p/60.
Also Available in 4x4, 4x8, 8x4, 8x8, 16x8 and 16x16 I/O sizes.
For DVI sources with protected content, the built-in HDCP management continuously authenticates HDCP compliant input/ output devices to enable swift and reliable switching for professional A/V environments. The built-in HDCP management technology can analyze HDCP key, and administers the handshake internally.
Cross point switching with audio breakaway is just one of the standard features this matrix performs. Fully controllable through RS-232 commands, IR remote and front-panel buttons, this switcher includes 9-global presets for I/O configurations which allows saving and recalling via the front-panel, IR or through serial control at any time.
The KanexPro line-up of DVI matrices is ideal for countless commercial applications such as military, medical and government environments where swift, reliable switching and distribution of high-resolution DVI/HDMI signals is critical to meet pixel-by-pixel needs.
Features
Switch four DVI/HDMI signals between multiple sources and displays
Supports bandwidth up to 10.2 Gbps
Built-in EDID & HDCP internal management
HDCP complaint
Supports High Speed HDMI Specifications (Deep Color, Lip Sync, and HD lossless audio formats)
Supports full HD 1080p (1920x1080@60Hz)
Computer resolutions up to WUXGA (1920x1200@60Hz)
Supports DDC transmission
Automatic gain compensation and equalization up to 100ft (30m)
Audio breakaway switching for corresponding video
3.5mm stereo audio jack for each input/ output
Supports Dolby digital-true HD, DTS-HD
CEC protocol pass-through.
Front-panel LEDs for input/output signal presence
Control through, IR, RS-232 and front-panel buttons
Full RS-232 control-perfect for incorporating third party control systems
Rack mountable 1U, aluminum enclosure
Internal Universal power adaptable (100Volt-240Volt AC, 50/60Hz)
Backed by KanexPro's 3-year full parts & labor warranty

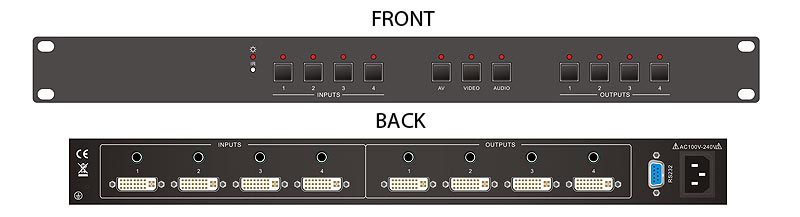

Panel
Also Available in 4x4, 4x8, 8x4, 8x8, 16x8 and 16x16 I/O sizes.
For DVI sources with protected content, the built-in HDCP management continuously authenticates HDCP compliant input/ output devices to enable swift and reliable switching for professional A/V environments. The built-in HDCP management technology can analyze HDCP key, and administers the handshake internally.
Cross point switching with audio breakaway is just one of the standard features this matrix performs. Fully controllable through RS-232 commands, IR remote and front-panel buttons, this switcher includes 9-global presets for I/O configurations which allows saving and recalling via the front-panel, IR or through serial control at any time.
The KanexPro line-up of DVI matrices is ideal for countless commercial applications such as military, medical and government environments where swift, reliable switching and distribution of high-resolution DVI/HDMI signals is critical to meet pixel-by-pixel needs.
Features
Switch four DVI/HDMI signals between multiple sources and displays
Supports bandwidth up to 10.2 Gbps
Built-in EDID & HDCP internal management
HDCP complaint
Supports High Speed HDMI Specifications (Deep Color, Lip Sync, and HD lossless audio formats)
Supports full HD 1080p (1920x1080@60Hz)
Computer resolutions up to WUXGA (1920x1200@60Hz)
Supports DDC transmission
Automatic gain compensation and equalization up to 100ft (30m)
Audio breakaway switching for corresponding video
3.5mm stereo audio jack for each input/ output
Supports Dolby digital-true HD, DTS-HD
CEC protocol pass-through.
Front-panel LEDs for input/output signal presence
Control through, IR, RS-232 and front-panel buttons
Full RS-232 control-perfect for incorporating third party control systems
Rack mountable 1U, aluminum enclosure
Internal Universal power adaptable (100Volt-240Volt AC, 50/60Hz)
Backed by KanexPro's 3-year full parts & labor warranty
Panel
