Switch between 4-VGA sources with Stereo Audio - VGASW4APA
Switch between 4-VGA sources with Stereo Audio - VGASW4APA
$ 525

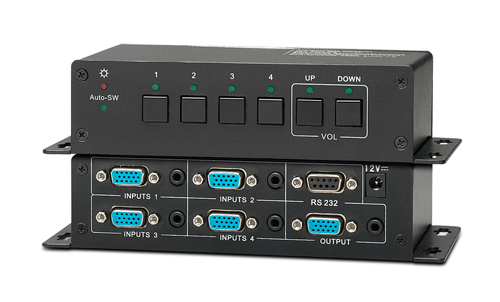

The KanexPro 1x4 VGA is an ultra-fast active switcher with four input, one output, with stereo audio, which enables the next generation of auto-switching between four computers with stereo audio to an interactive whiteboard or a projector. It supports analog video signals such as RGBHV, RGBS, RGsB, RGBHVS and high-resolution signals up to QUXGA (3200x2400@60Hz) including 1080p/60.
In addition, multiple VGASW4APA switchers can be daisy-chained using high-resolution VGA cables to create a multi-user presentation system. Also delivers various control options such as RS-232, manual switching through front-panel buttons and volume control.
As an added feature, audio-breakaway is also supported, which can be controlled by RS-232 or volume control buttons for the corresponding video signal when switched between the four inputs. The KanexPro 1x4 VGA auto-switcher is ideal for classroom, conference and control room applications where high-resolution VGA switching with audio is critical.
Features
Auto-switch high-resolution VGA sources with audio
Supports bandwidth up to 1Ghz (-3dB)
Supports full HD 1080p (1920x1080@60Hz)
Computer resolutions up to QUXGA (3200x2400@60Hz)
Automatic gain compensation and equalization
Audio breakaway switching for corresponding video
3.5mm stereo audio jack for input/ output
Front-panel LEDs for input signal presence
Control through RS-232 and front-panel buttons
Full RS-232 control-perfect for incorporating third party control systems
Table/ Wall-mountable aluminum enclosure
Universal power adaptable (100Volt-240Volt AC, 50/60Hz)
Backed by KanexPro's 3-Year full parts & labor warranty

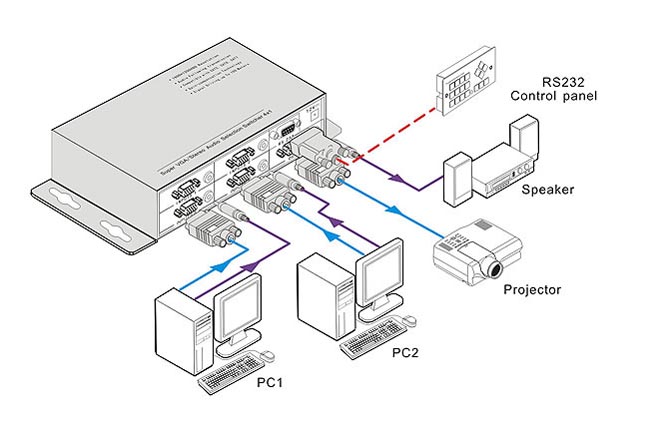

Connection diagram

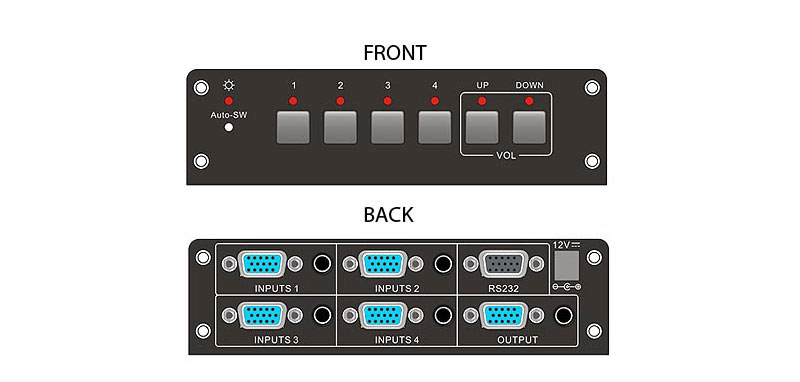

Panel
In addition, multiple VGASW4APA switchers can be daisy-chained using high-resolution VGA cables to create a multi-user presentation system. Also delivers various control options such as RS-232, manual switching through front-panel buttons and volume control.
As an added feature, audio-breakaway is also supported, which can be controlled by RS-232 or volume control buttons for the corresponding video signal when switched between the four inputs. The KanexPro 1x4 VGA auto-switcher is ideal for classroom, conference and control room applications where high-resolution VGA switching with audio is critical.
Features
Auto-switch high-resolution VGA sources with audio
Supports bandwidth up to 1Ghz (-3dB)
Supports full HD 1080p (1920x1080@60Hz)
Computer resolutions up to QUXGA (3200x2400@60Hz)
Automatic gain compensation and equalization
Audio breakaway switching for corresponding video
3.5mm stereo audio jack for input/ output
Front-panel LEDs for input signal presence
Control through RS-232 and front-panel buttons
Full RS-232 control-perfect for incorporating third party control systems
Table/ Wall-mountable aluminum enclosure
Universal power adaptable (100Volt-240Volt AC, 50/60Hz)
Backed by KanexPro's 3-Year full parts & labor warranty
Connection diagram
Panel
