2x1 DVI Switcher with built-in HDCP, Audio & RS-232 - DVISW2A
2x1 DVI Switcher with built-in HDCP, Audio & RS-232 - DVISW2A
$ 500
The KanexPro DVI 2x1 switcher is a two input, one output auto-switch with stereo audio, which supports PC resolutions up to 1920x1200 and 1080p/60 with 12-bit Color depth. The switcher provisions built-in HDCP management technology, which analyzes HDCP key, and administers the handshake internally.
The switcher also features built-in gain equalization and synchronization for each input to provide full compensation for signal loss when routed using long DVI/HDMI cables or source devices with weak DVI signals.
With convenient control options such as RS-232, front-panel buttons and IR, this unit can be easily integrated to any Pro A/V environment such as conference rooms, educational facilities, control rooms, monitoring centers and government institutions.
Features
Switch two DVI/HDMI inputs with video and stereo audio
Supports bandwidth up to 10.2 Gbps
Built-in EDID & HDCP internal management
HDCP complaint
Supports full HD 1080p (1920x1080@60Hz)
Computer resolutions up to WUXGA (1920x1200@60Hz)
Supports DDC transmission
Automatic gain compensation and equalization up to 100ft (30m)
Audio breakaway switching for corresponding video
3.5mm stereo audio jack for each input/ output
Control through, IR, RS-232 and front-panel buttons
Full RS-232 control-perfect for incorporating third party control systems
Table/ Wall-mountable aluminum enclosure
Internal Universal power adaptable (100Volt-240Volt AC, 50/60Hz)
Backed by KanexPro's 3-Year full parts & labor warranty

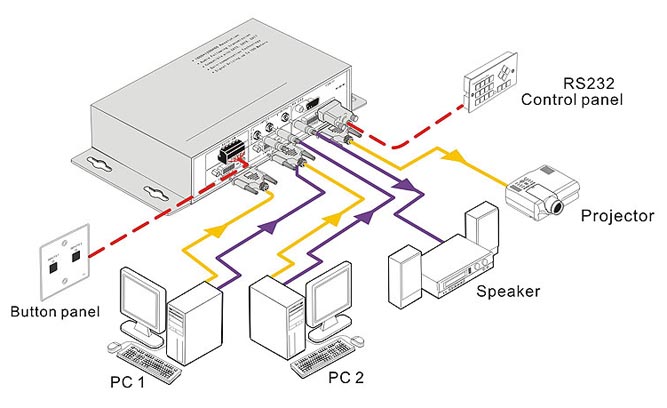

Connection diagram
Panel
