VGA 1x2 Auto-Switcher with USB 2.0 and Stereo Audio - VGASWUSB
VGA 1x2 Auto-Switcher with USB 2.0 and Stereo Audio - VGASWUSB
$ 450

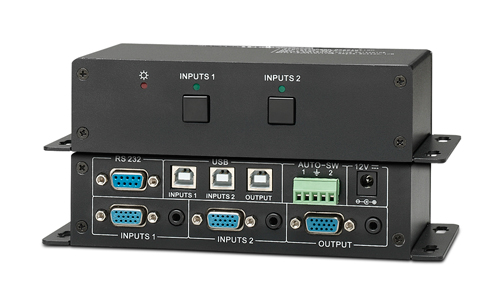

The KanexPro 1x2 VGA switcher is a compact two input, one output, active switcher with USB, which enables the next generation of auto-switching between two computers with stereo audio to an interactive whiteboard or a projector. It supports analog video signals such as RGBHV, RGBS, RGsB, RGBHVS and high-resolution signals up to QUXGA (3200x2400@60Hz) including 1080p/60.
In addition, several VGASWUSB switchers can be daisy-chained using high-resolution VGA cables to create a multi-user presentation system. Also provides various control options such as RS-232, front-panel buttons or using an optional contact closure wall plate that can be remotely installed up to 100 meter away from the switcher.
The KanexPro 1x2 VGA auto-switcher is ideal for classroom, conference room and lecture hall applications where high-resolution VGA switching with USB and audio is critical.
Features
Auto-switch high-resolution VGA sources with USB and audio
Supports bandwidth up to 1Ghz (-3dB)
Supports full HD 1080p (1920x1080@60Hz)
Computer resolutions up to QUXGA (3200x2400@60Hz)
Automatic gain compensation and equalization
Audio breakaway switching for corresponding video
3.5mm stereo audio jack for input/ output
2 x USB 2.0 Type B connector for PC input
Front-panel LEDs for input signal presence
Control through RS-232 and front-panel buttons
Full RS-232 control-perfect for incorporating third party control systems
Table/ Wall-mountable aluminum enclosure
Universal power adaptable (100Volt-240Volt AC, 50/60Hz)
Backed by KanexPro's 3-Year full parts & labor warranty

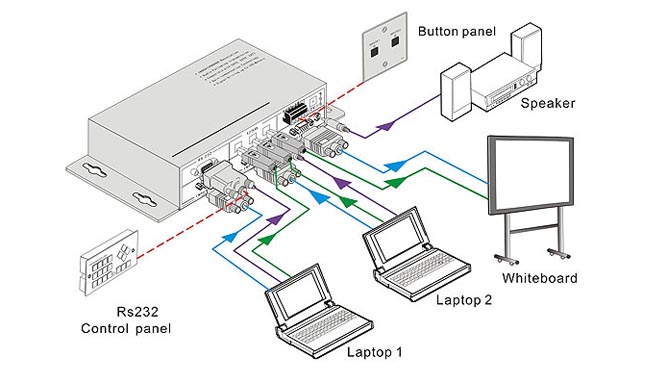

Connection Diagram

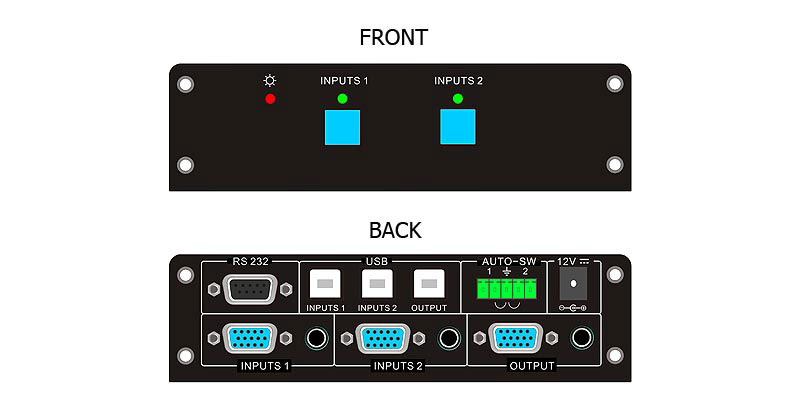

Panel
In addition, several VGASWUSB switchers can be daisy-chained using high-resolution VGA cables to create a multi-user presentation system. Also provides various control options such as RS-232, front-panel buttons or using an optional contact closure wall plate that can be remotely installed up to 100 meter away from the switcher.
The KanexPro 1x2 VGA auto-switcher is ideal for classroom, conference room and lecture hall applications where high-resolution VGA switching with USB and audio is critical.
Features
Auto-switch high-resolution VGA sources with USB and audio
Supports bandwidth up to 1Ghz (-3dB)
Supports full HD 1080p (1920x1080@60Hz)
Computer resolutions up to QUXGA (3200x2400@60Hz)
Automatic gain compensation and equalization
Audio breakaway switching for corresponding video
3.5mm stereo audio jack for input/ output
2 x USB 2.0 Type B connector for PC input
Front-panel LEDs for input signal presence
Control through RS-232 and front-panel buttons
Full RS-232 control-perfect for incorporating third party control systems
Table/ Wall-mountable aluminum enclosure
Universal power adaptable (100Volt-240Volt AC, 50/60Hz)
Backed by KanexPro's 3-Year full parts & labor warranty
Connection Diagram
Panel
